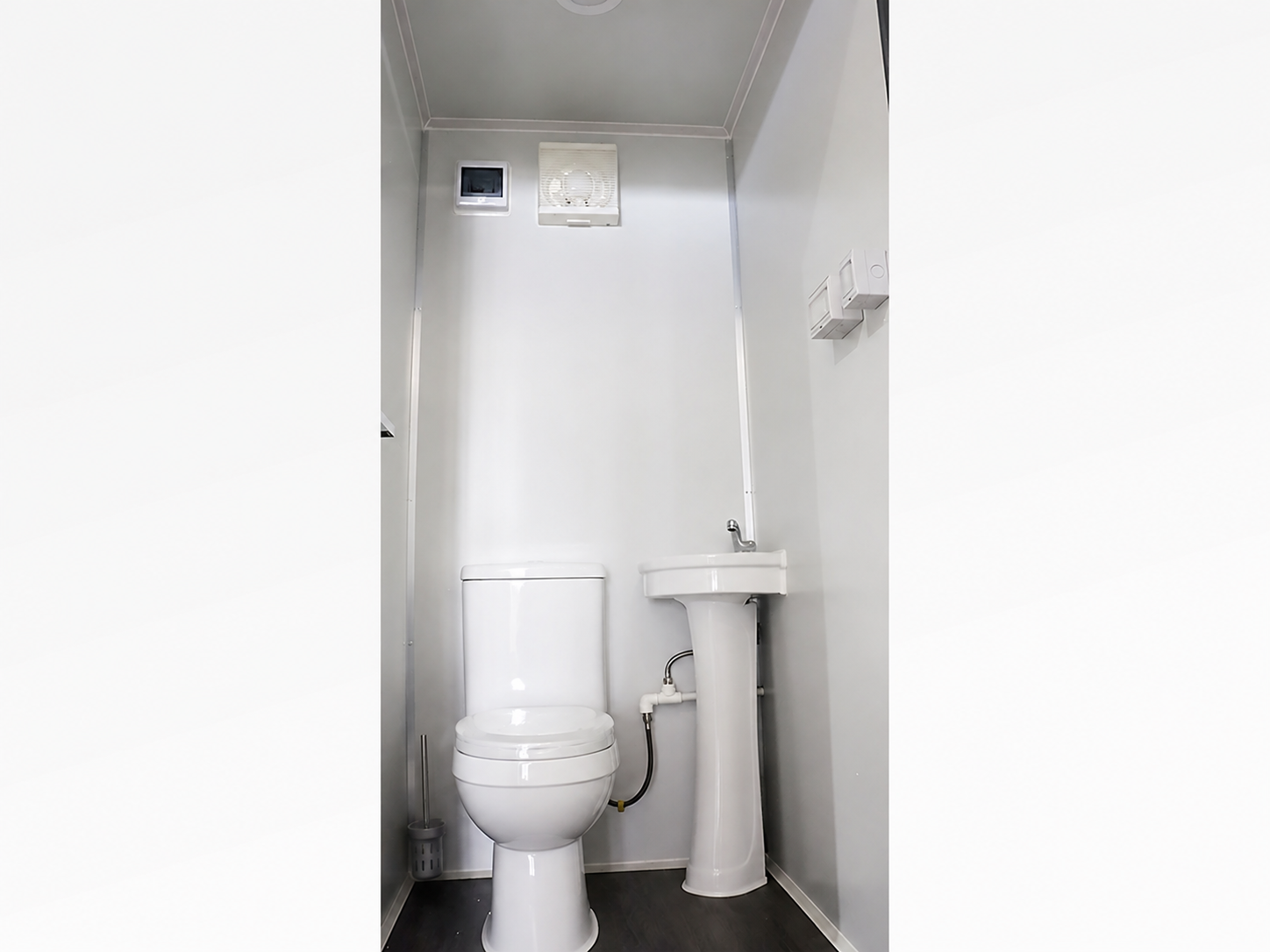

Hand basin
Fitted hand basin and storage cabinet.

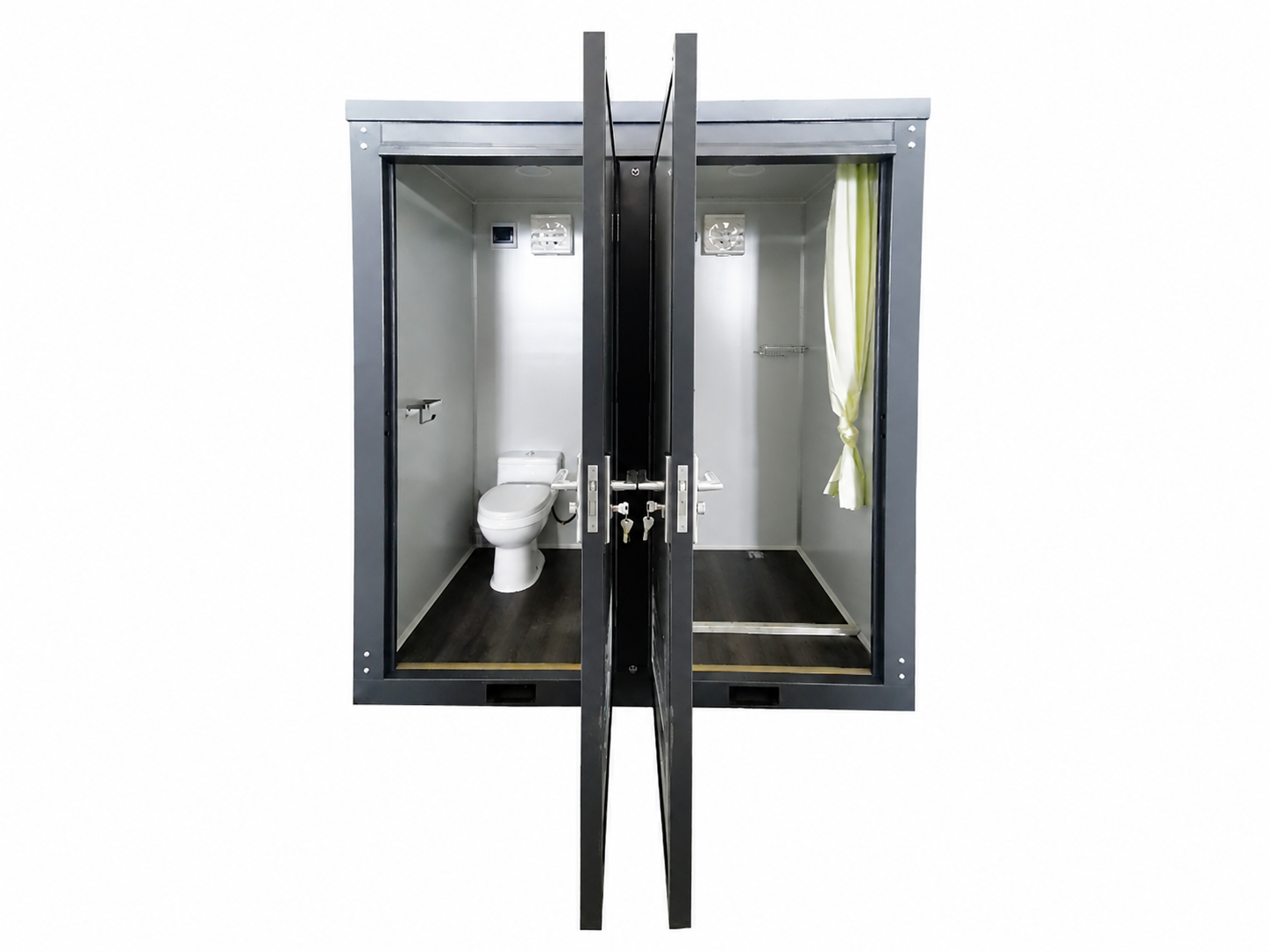

Separate toilet and shower rooms
Built for the site. Planned for the space.

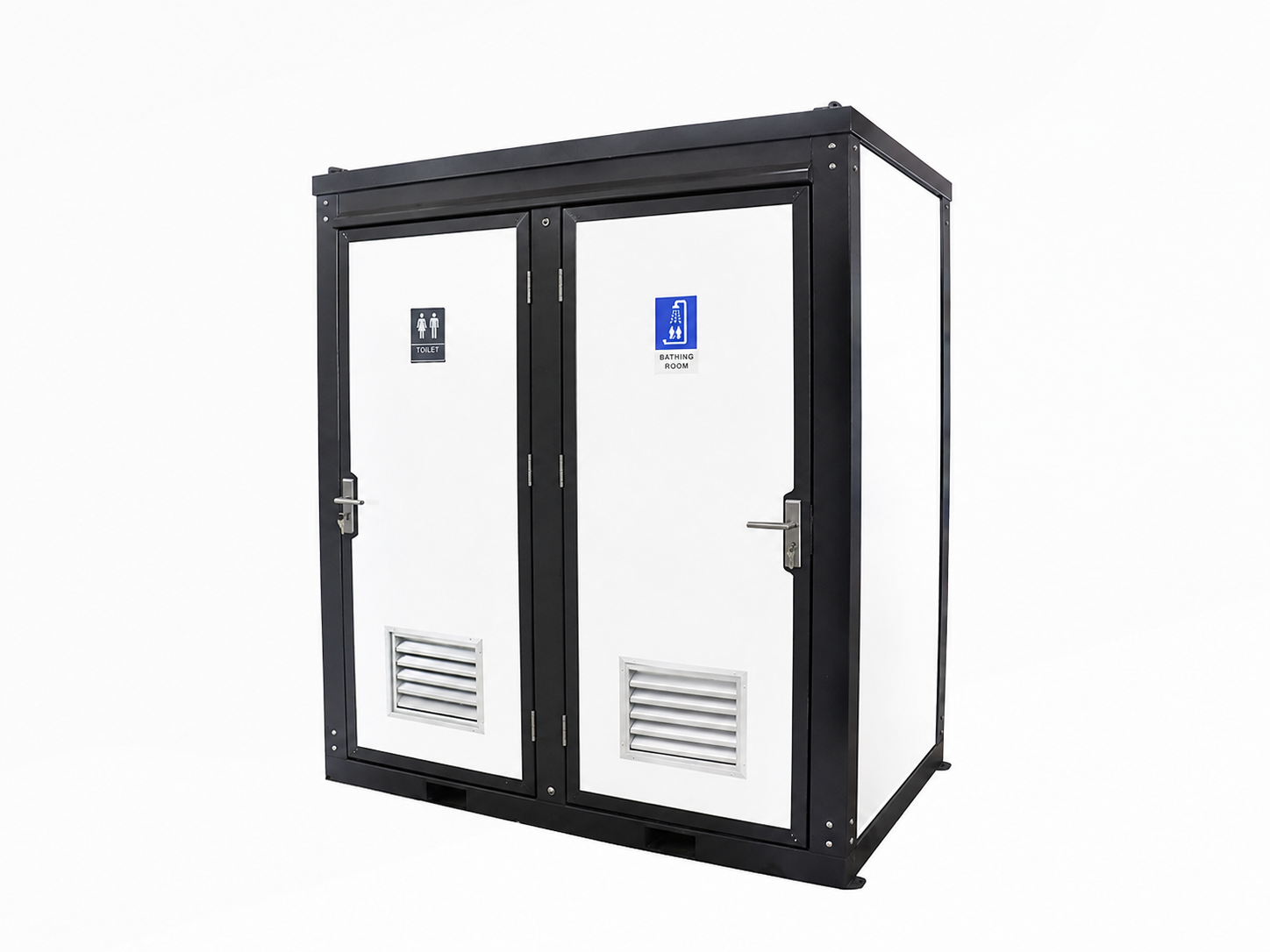

A two-room module with a toilet and hand basin in one cubicle and a separate shower in the other, each with its own external entrance.
Product views
See every detail

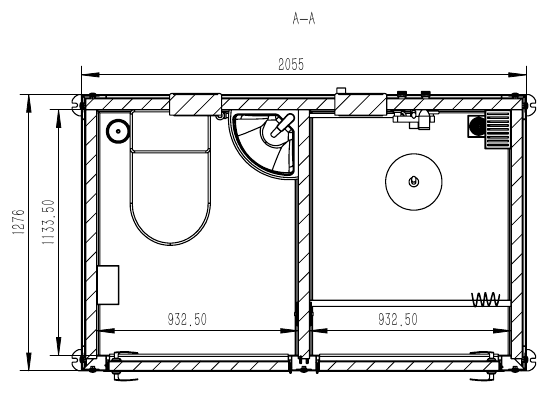

Dimensions & layout
- Length
- 2075 mm
- Width
- 1325 mm
- Height
- 2320 mm
- Approx. weight
- 480 kg
Dimensions and layout are indicative. Confirm the final drawing before foundations, service placement or consent work.
Forklift pockets
Built-in forklift pockets assist planned handling and repositioning.
Lockable door
Lockable external door hardware for privacy and security.
Key features
- Separate toilet and shower cubicles

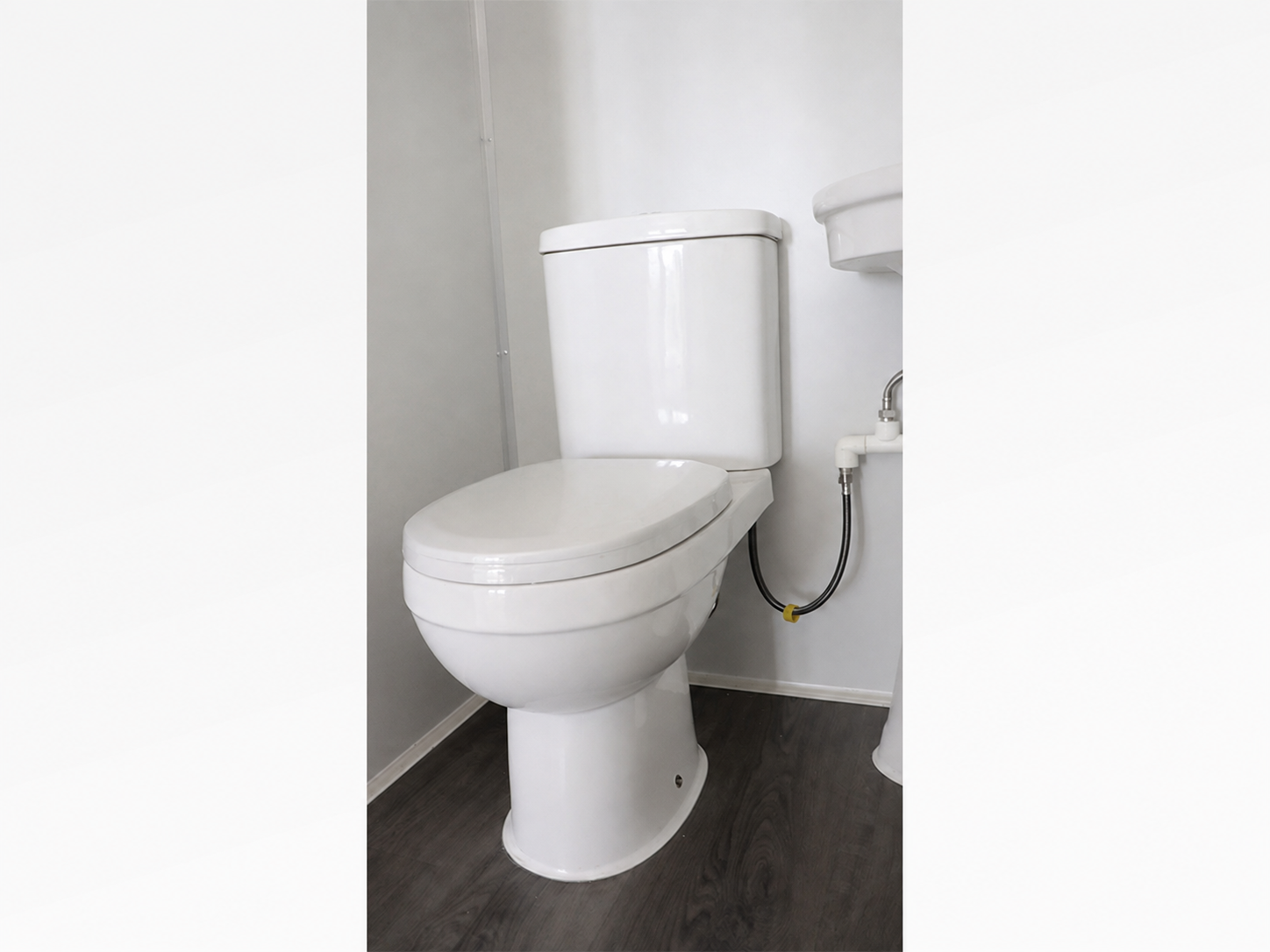

- Ceramic toilet and pedestal basin in the toilet room

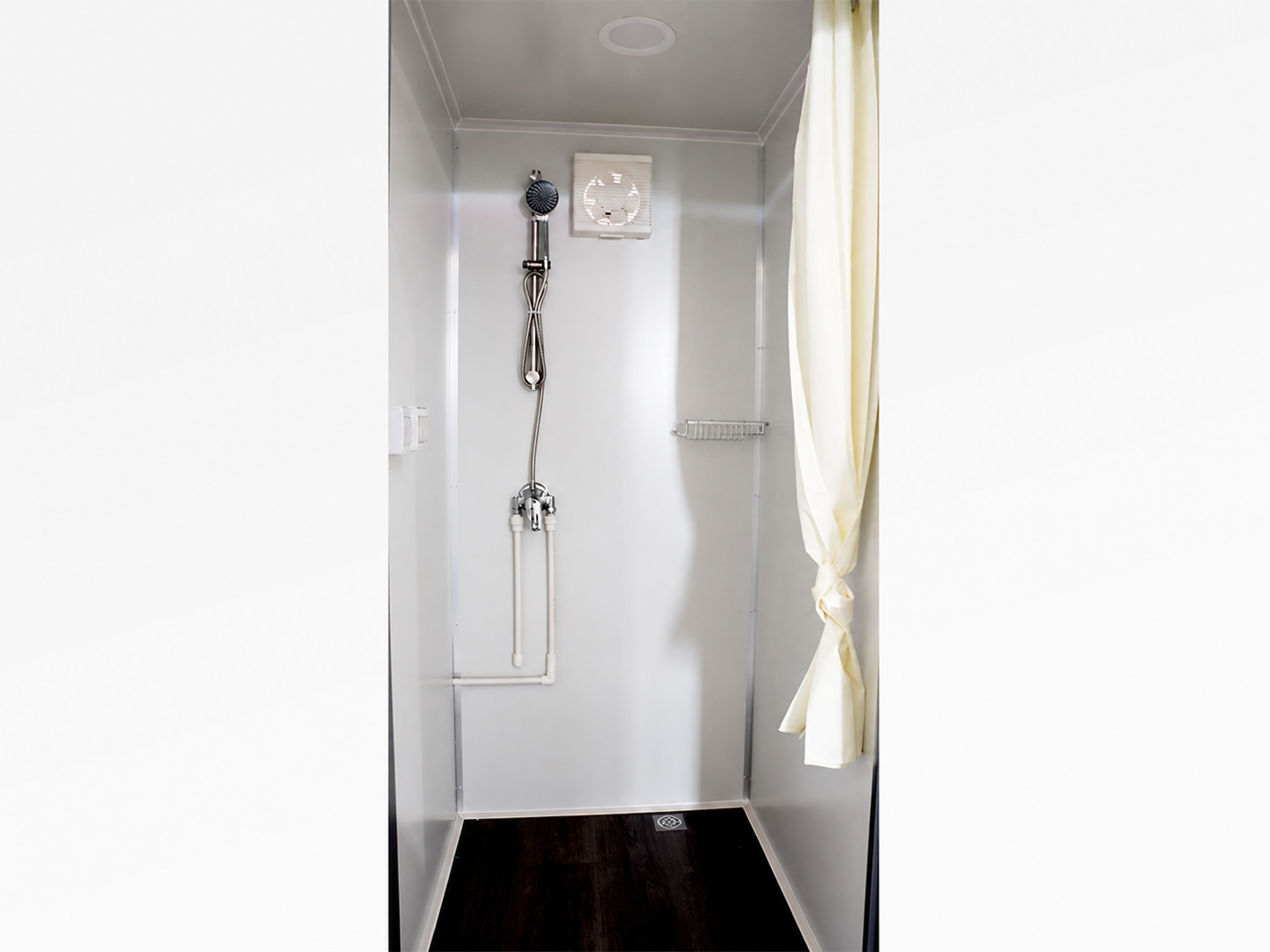

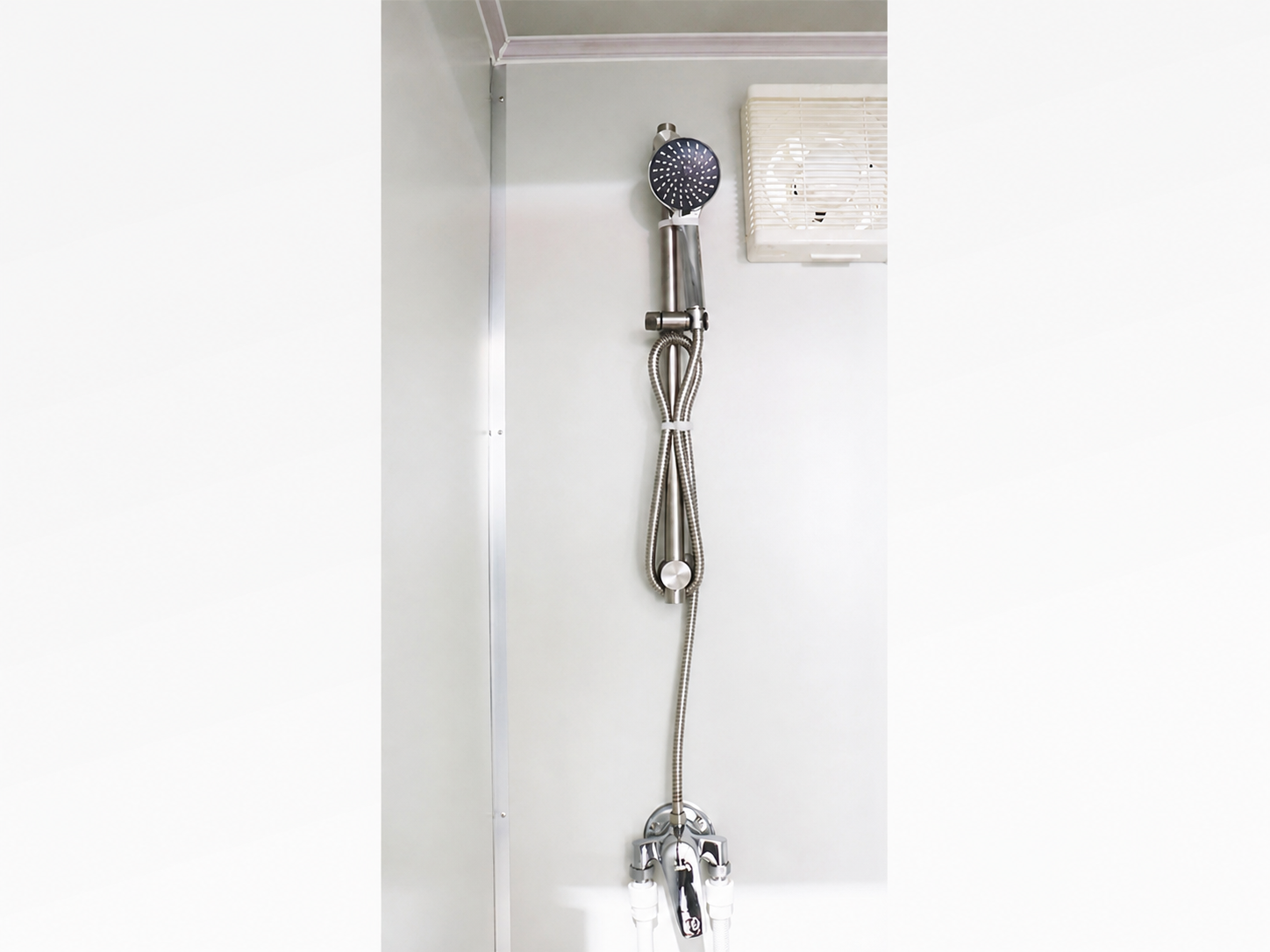

- Shower fittings and drainage visible in the shower room
- Independent external doors for each room

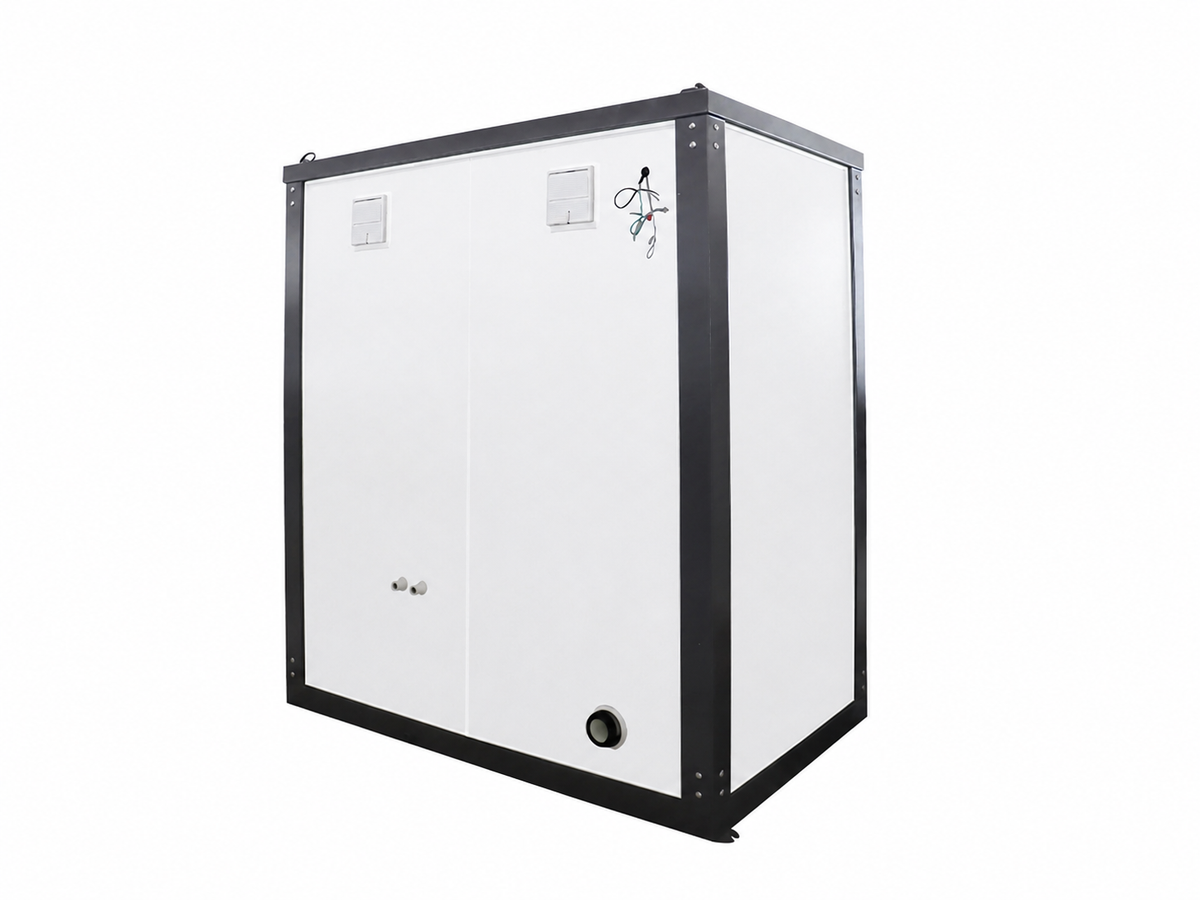

- Factory electrical and plumbing fit-out with external connection points
- Steel frame, insulated panels and anti-slip floor
Suitable for

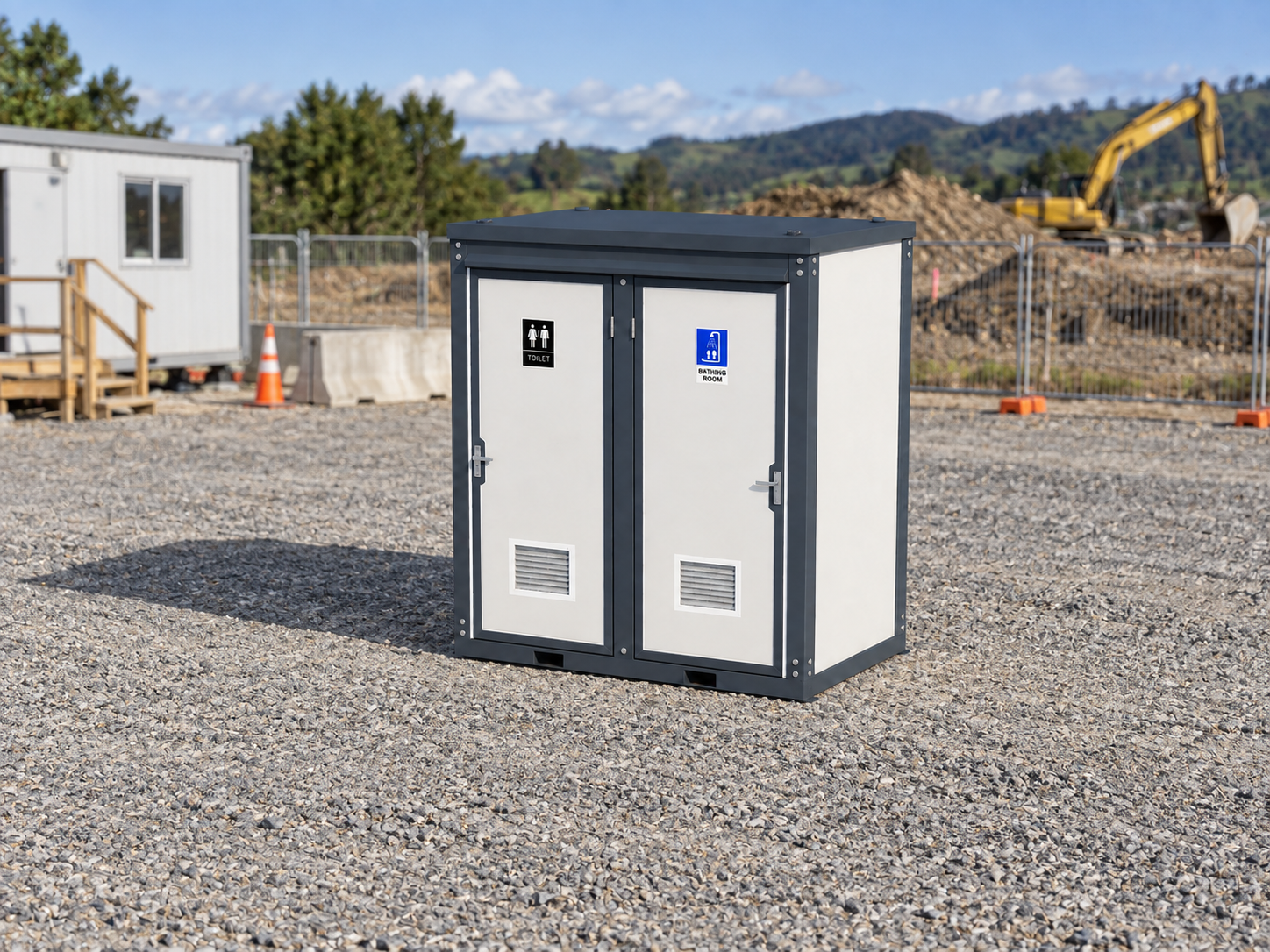

- Construction and civil worksites
- Events and temporary facilities
- Rural, industrial and commercial sites
- Sites needing toilet and shower privacy with possible concurrent use
Practical benefits
Separate wet room
The shower does not share the toilet cubicle.
Concurrent access
Independent entrances allow both rooms to be used separately.
One transportable shell
Two amenity functions are combined within a compact module.
Specifications
- Dimensions
- 2075 mm × 1325 mm × 2320 mm
- Approx. weight
- 480 kg
- Configuration
- Separate shower cubicle plus toilet/basin cubicle
- Structure
- Q235 steel frame and steel roof
- Walls and roof
- 50 mm EPS composite panels
- Floor
- 12 mm rigid PVC plus 3 mm anti-slip finish
- Water inlet
- 20 PPR pipe with 1/2-inch connection
- Drain outlets
- Ø40 drain; Ø90 toilet discharge listed
- Electrical
- concealed wiring, 16 A breaker, 32 A aviation socket, 18 W light and fan
