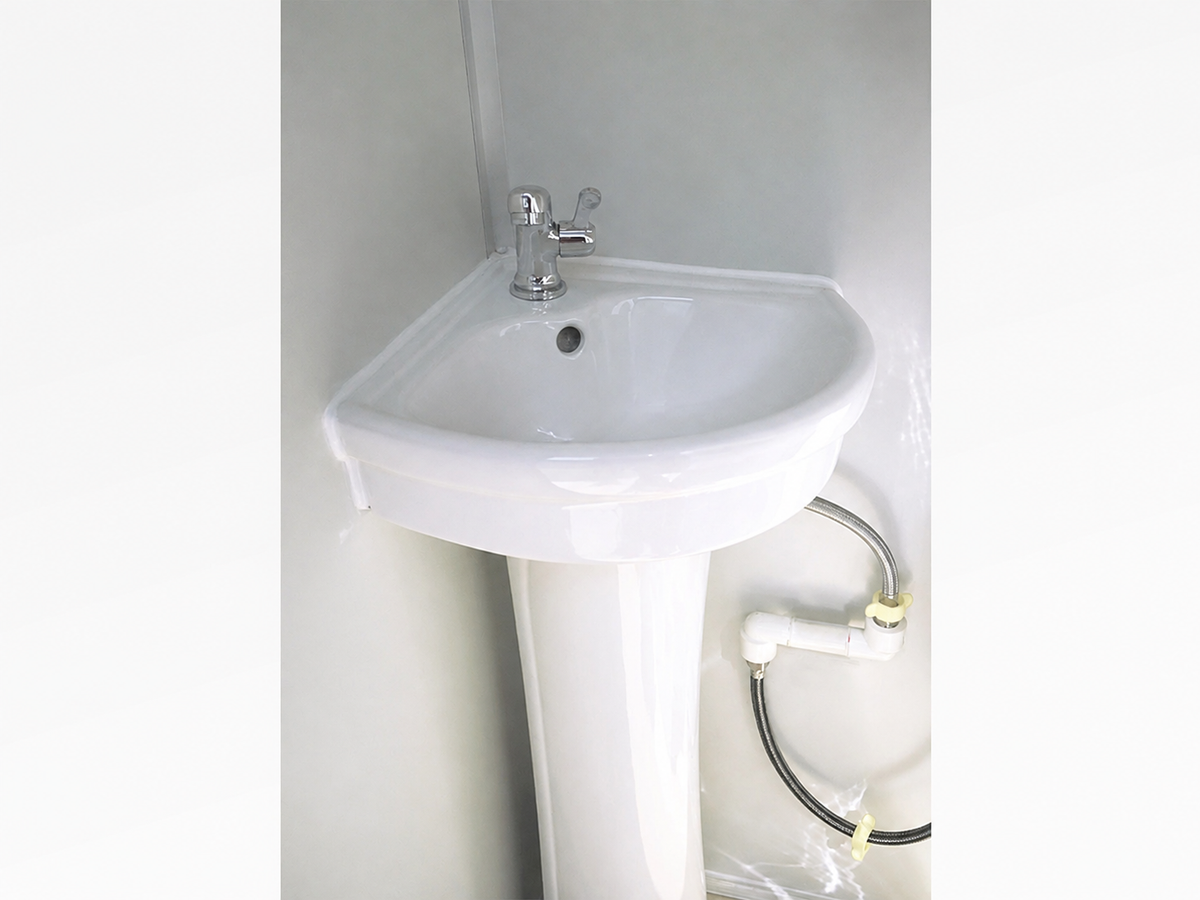

Hand basin
Fitted hand basin and storage cabinet.

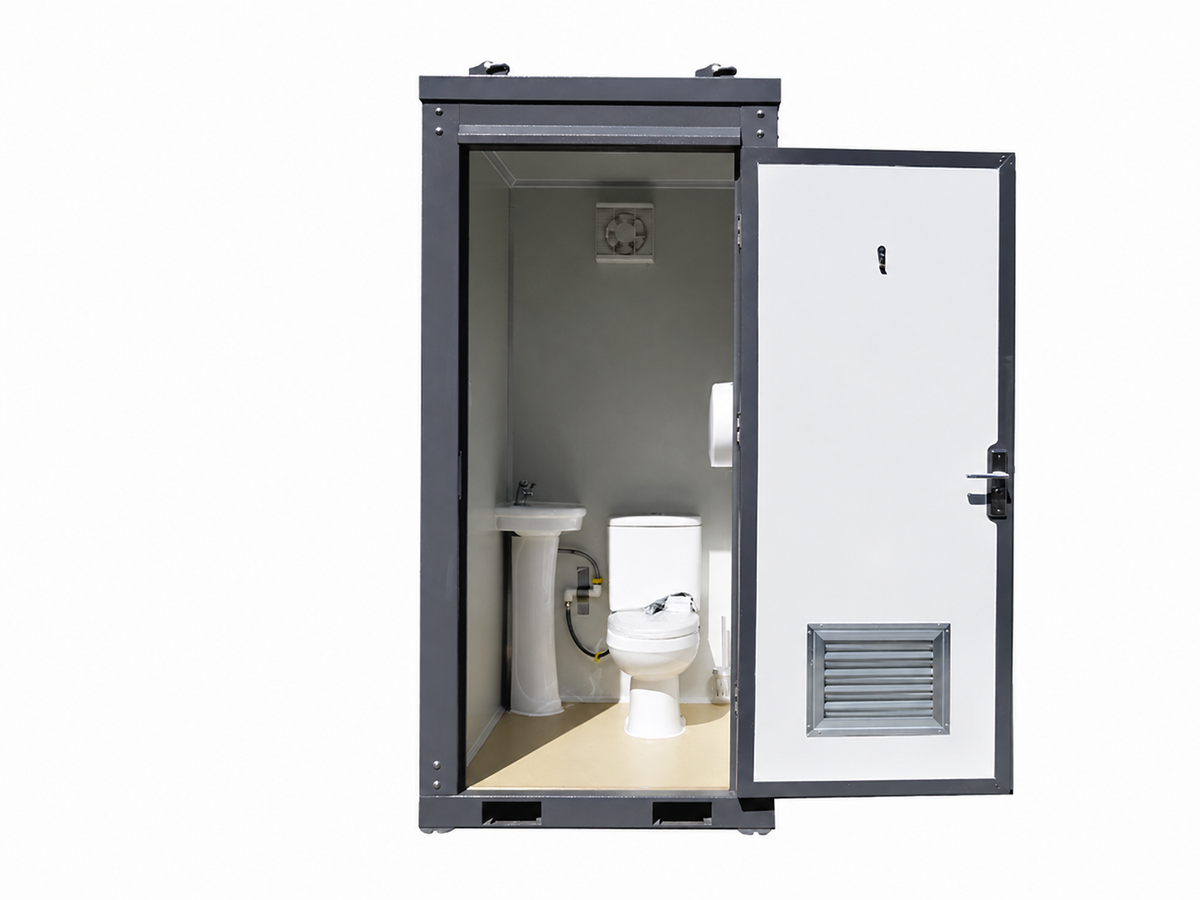

Compact single-user toilet
Built for the site. Planned for the space.
The smallest footprint in the range, with a ceramic toilet, pedestal hand basin, ventilation and lighting in one private cubicle.
Product views
See every detail

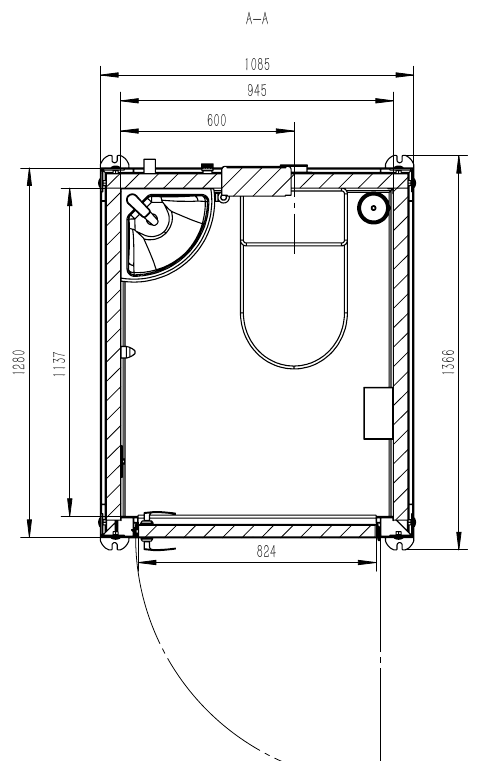

Dimensions & layout
- Length
- 1100 mm
- Width
- 1325 mm
- Height
- 2320 mm
- Approx. weight
- 270 kg
Dimensions and layout are indicative. Confirm the final drawing before foundations, service placement or consent work.
Forklift pockets
Built-in forklift pockets assist planned handling and repositioning.

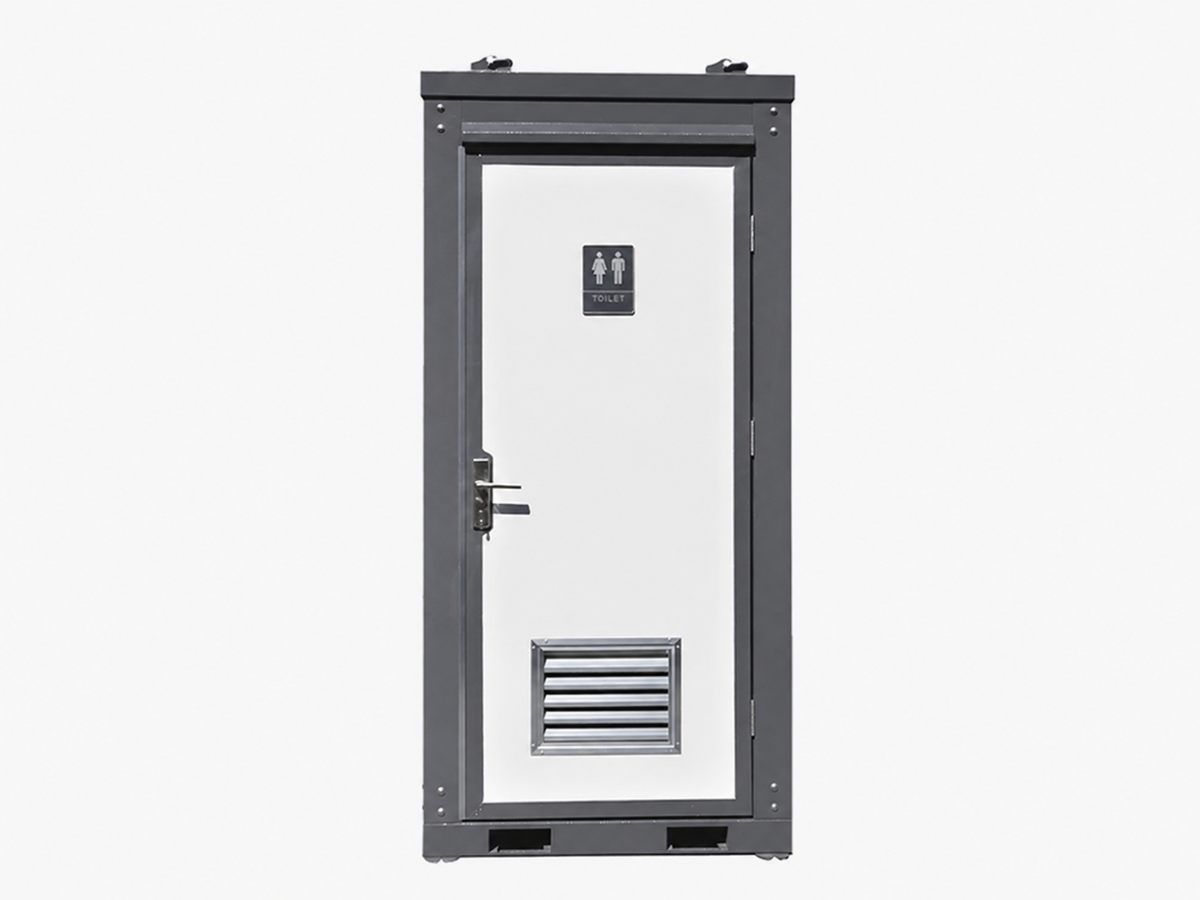

Lockable door
Lockable external door hardware for privacy and security.
Key features
- Single private toilet cubicle

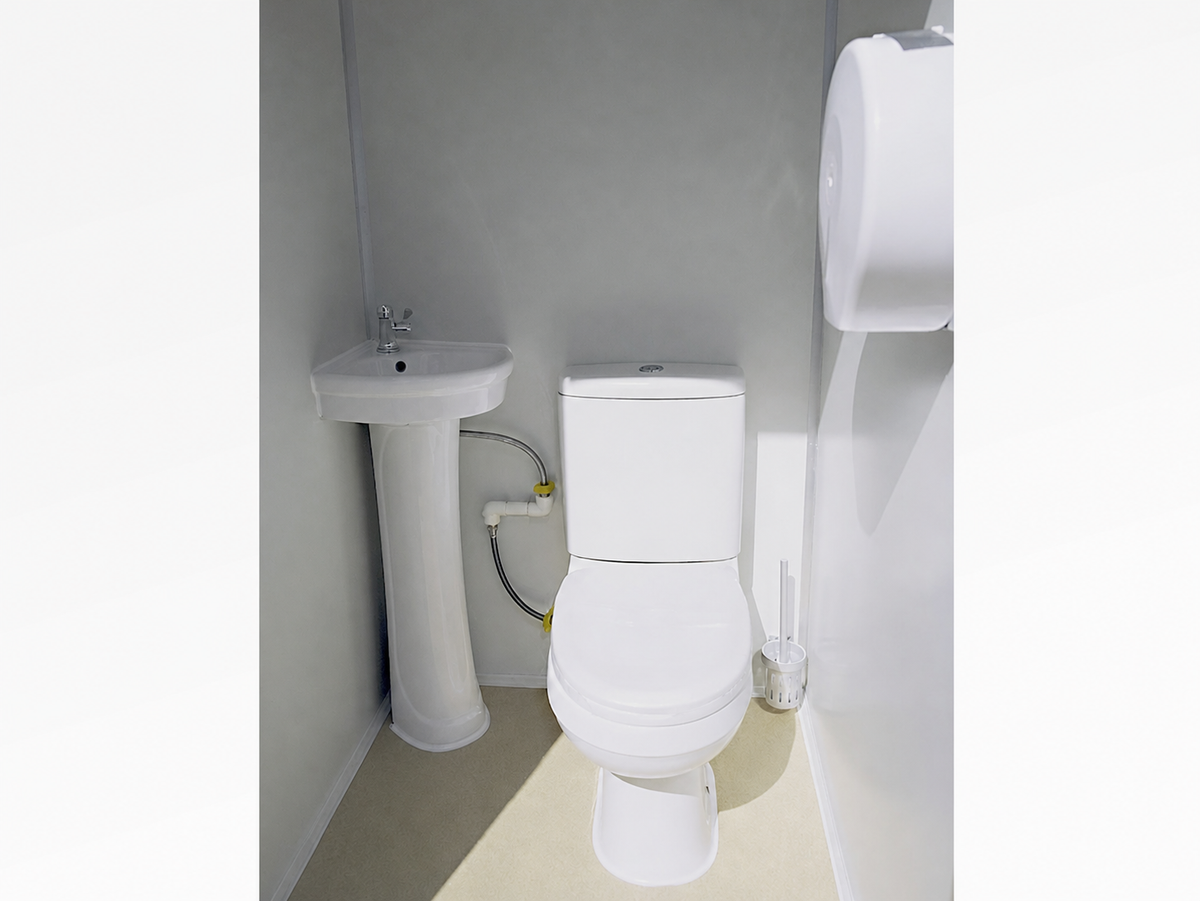

- Ceramic toilet and pedestal hand basin
- Factory electrical fit-out with light, fan, breaker, switches and connection socket
- Factory plumbing fit-out with water and waste connection points
- Compact steel-framed insulated shell
- Anti-slip and wear-resistant floor finish
Suitable for

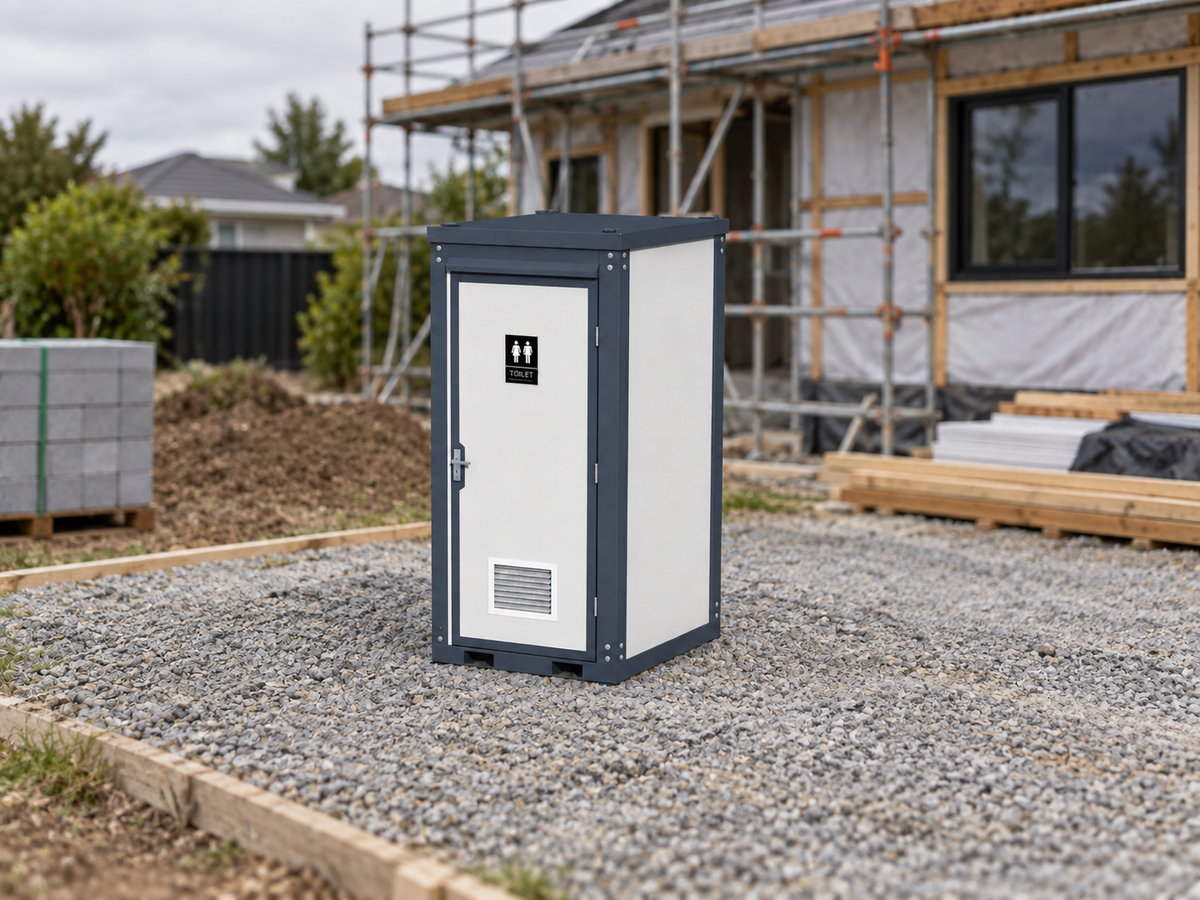

- Smaller construction sites
- Temporary staff or visitor facilities
- Rural and industrial locations
- Sites with limited footprint and available utilities
Practical benefits
Compact footprint
Fits where a two-room facility is unnecessary or space is tight.
Handwashing included
Basin and toilet functions are combined in one cubicle.
Relocatable format
Steel-framed module can move as site requirements change, using an approved handling method.
Specifications
- Dimensions
- 1100 mm × 1325 mm × 2320 mm
- Approx. weight
- 270 kg
- Configuration
- Single toilet with hand basin
- Structure
- Q235 steel frame and steel roof
- Walls and roof
- 50 mm EPS composite panels
- Floor
- 12 mm rigid PVC plus 3 mm anti-slip/wear-resistant finish
- Water inlet
- 20 PPR pipe with 1/2-inch connection
- Drain outlets
- Ø40 drain; Ø90 toilet discharge
- Electrical
- concealed wiring, 16 A breaker, 32 A aviation socket, 18 W light and fan
