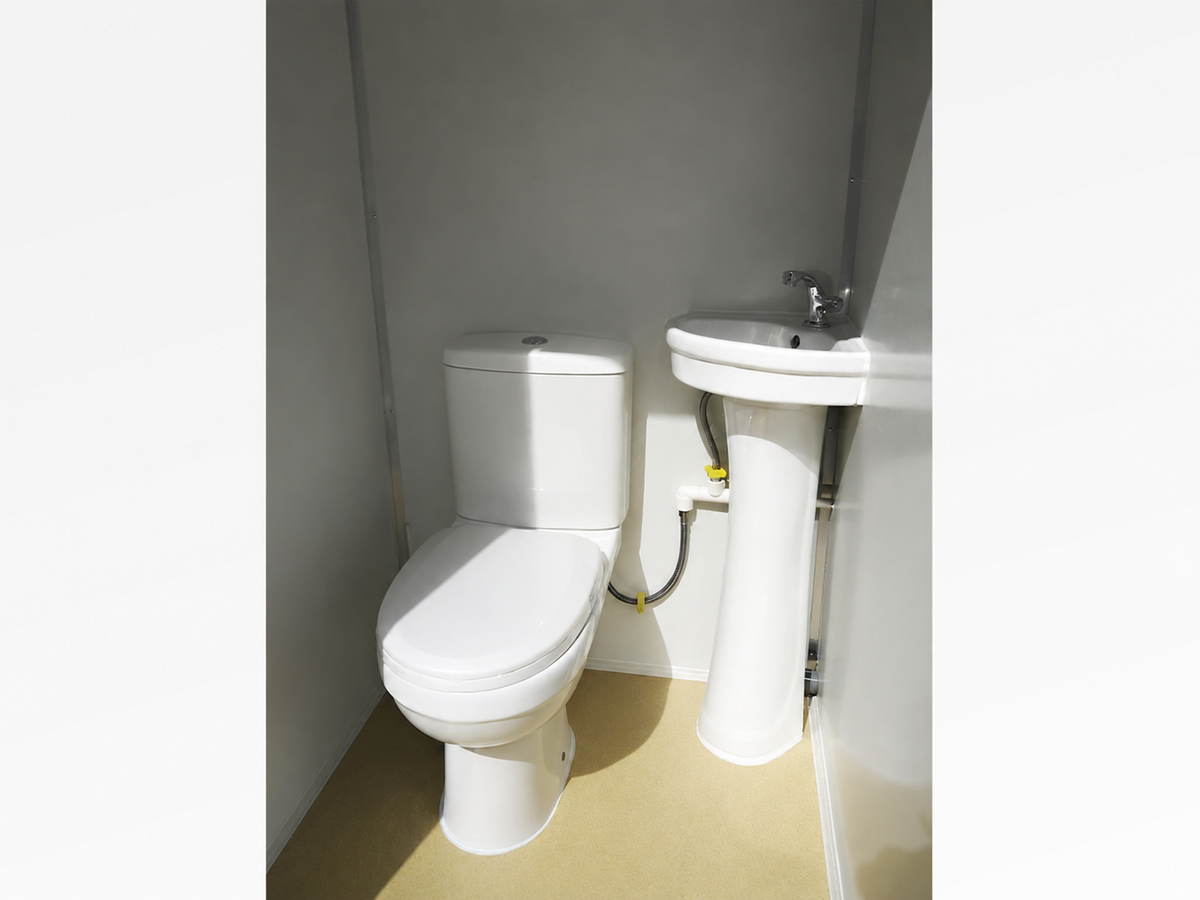

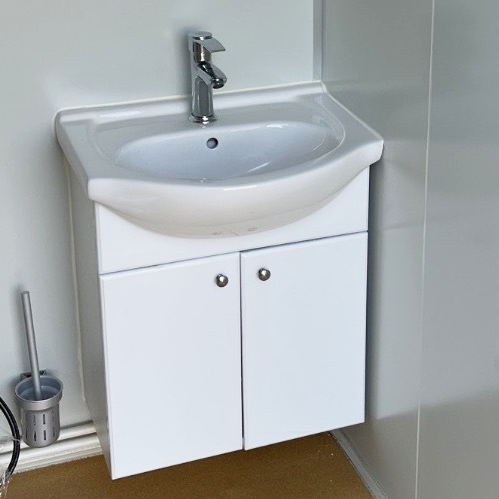

Hand basin
Fitted hand basin and storage cabinet.

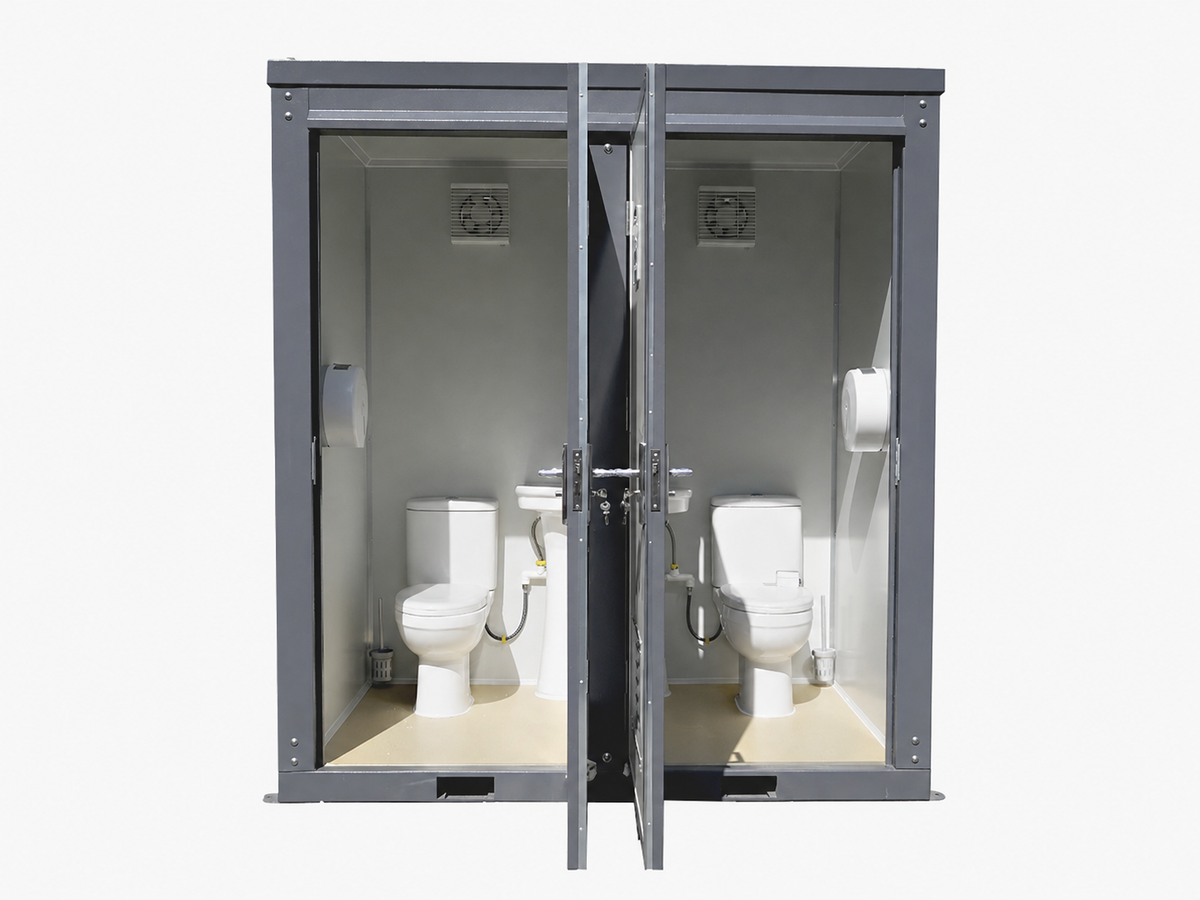

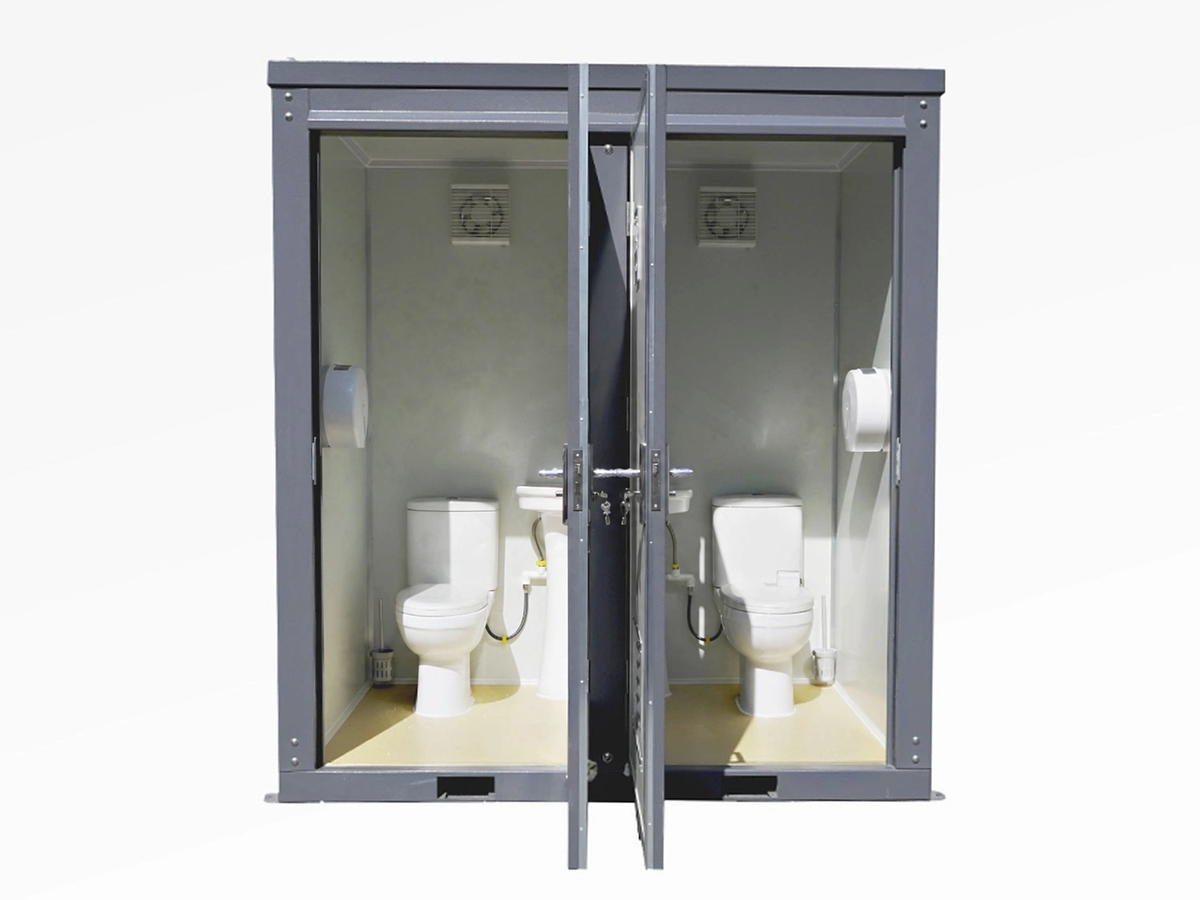

Two private toilet cubicles
Built for the site. Planned for the space.

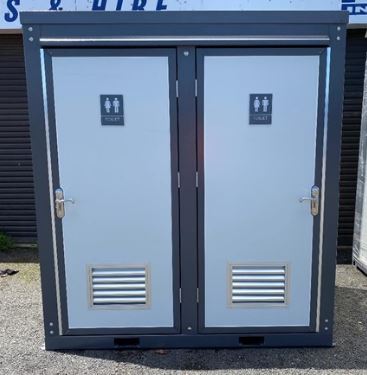

A relocatable two-cubicle toilet block with one ceramic toilet, hand basin, ventilation and lighting in each separately entered room.

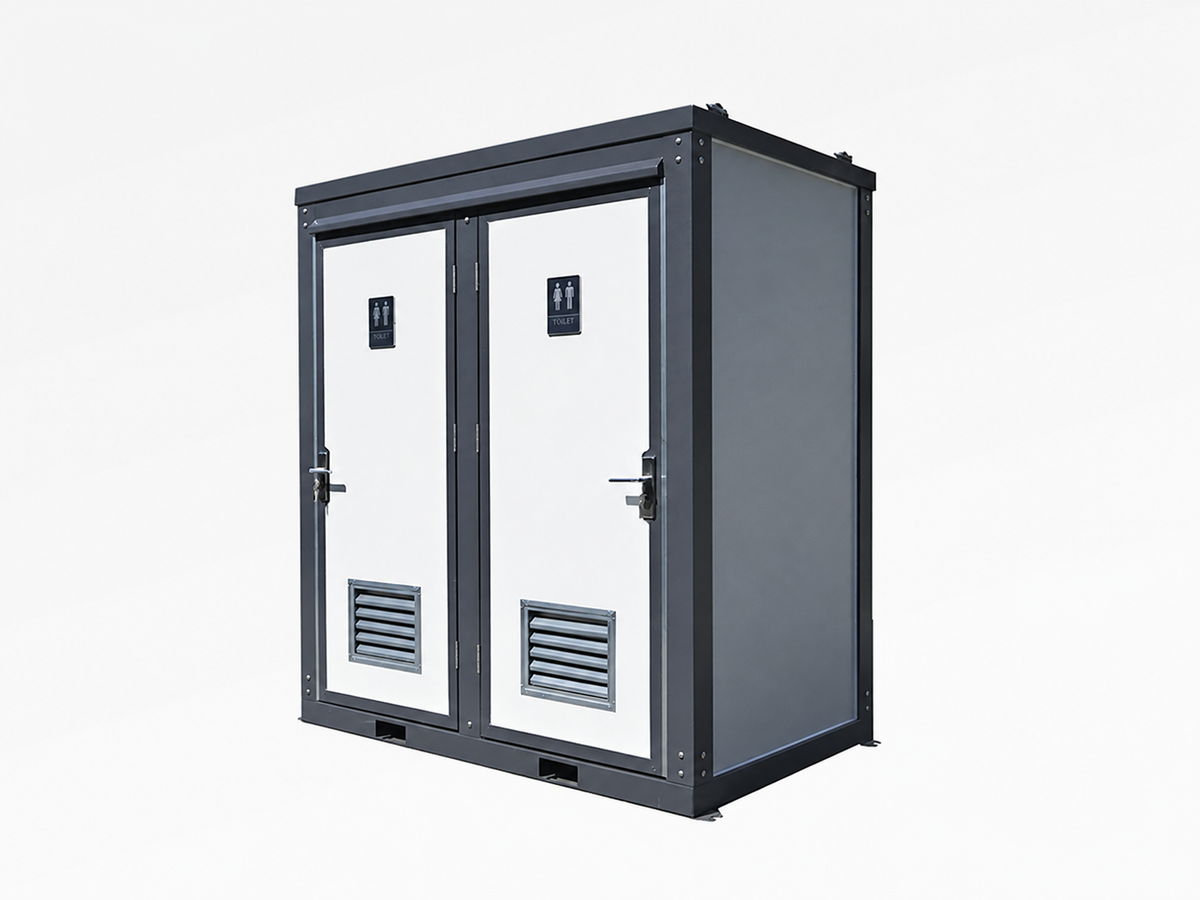

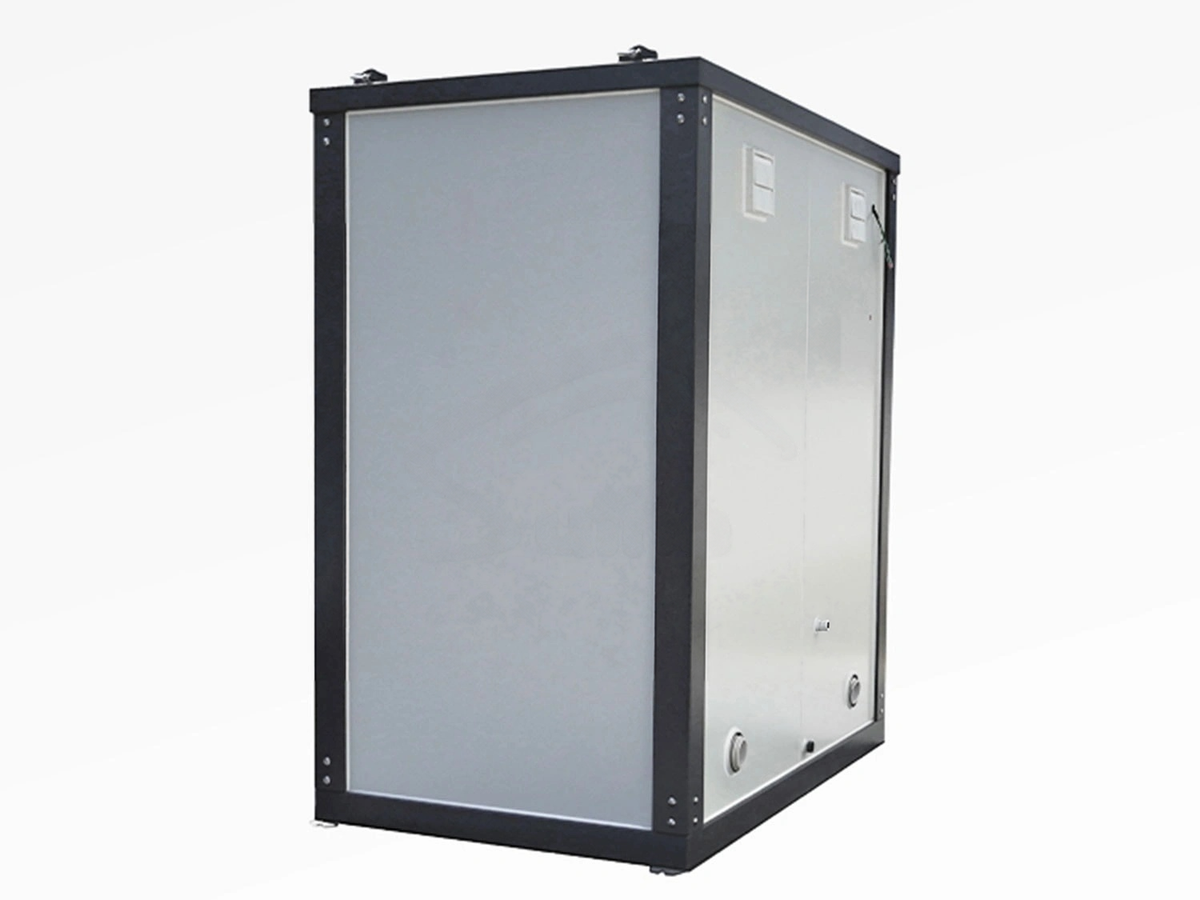

Product views
See every detail

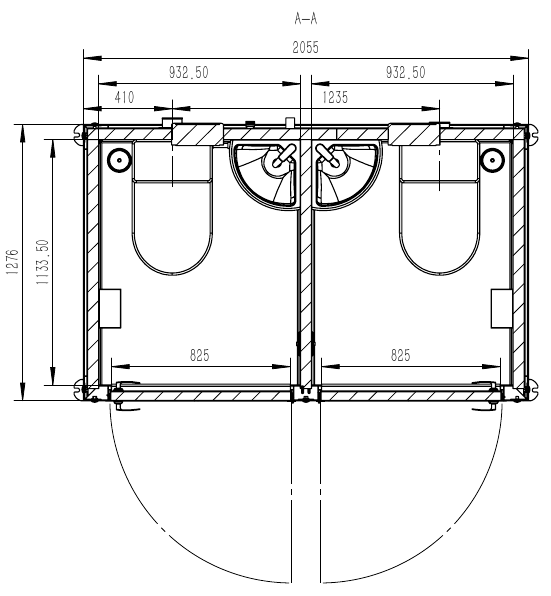

Dimensions & layout
- Length
- 2160 mm
- Width
- 1300 mm
- Height
- 2360 mm
- Approx. weight
- 490 kg
Dimensions and layout are indicative. Confirm the final drawing before foundations, service placement or consent work.

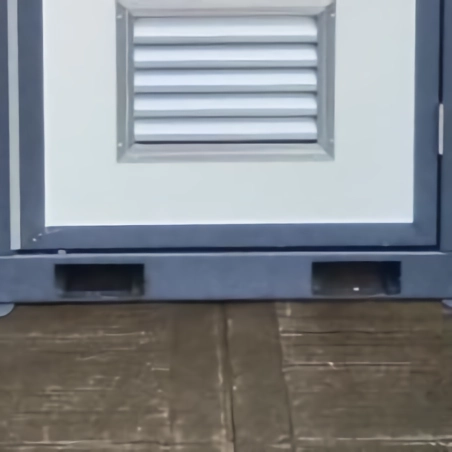

Forklift pockets
Built-in forklift pockets assist planned handling and repositioning.

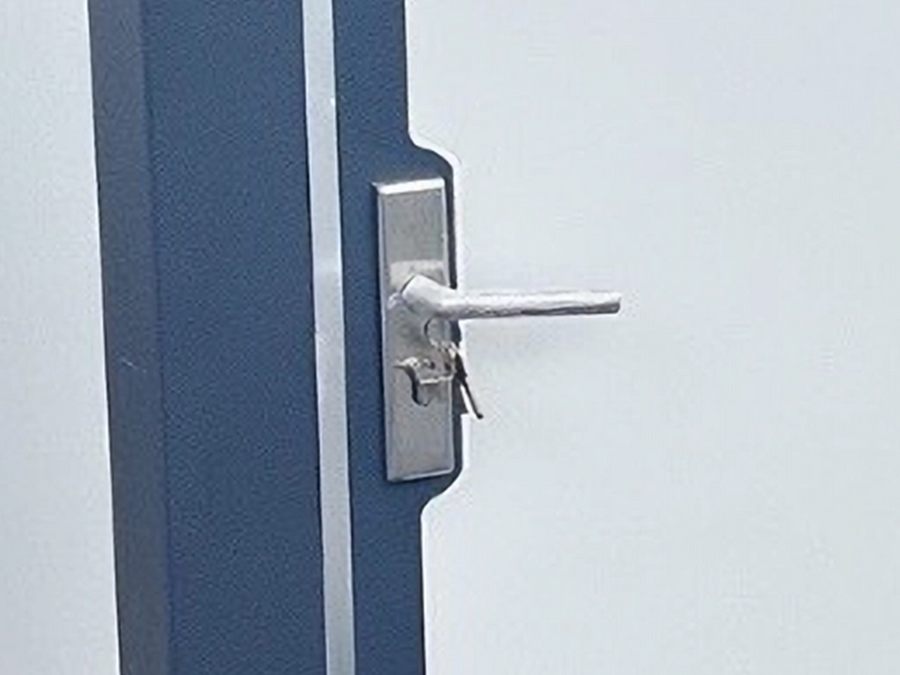

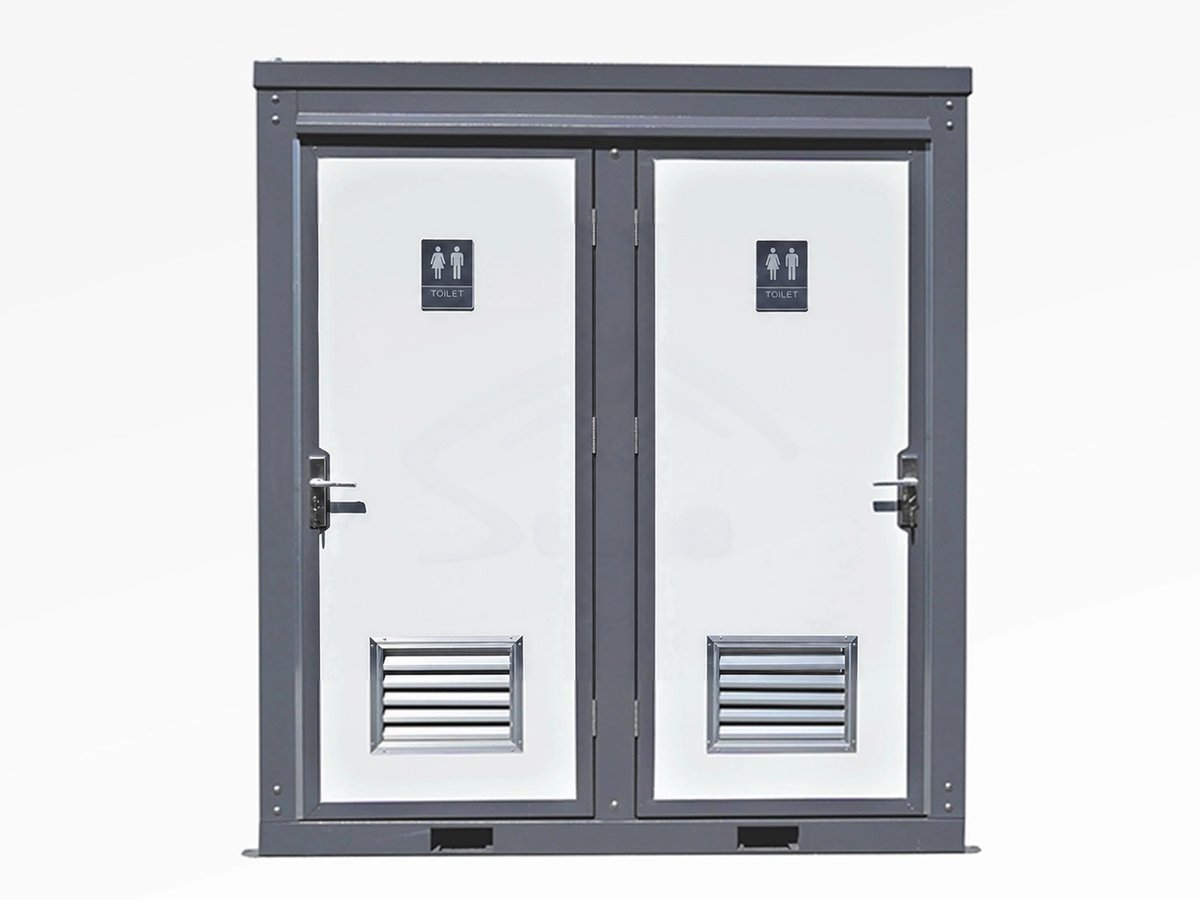

Lockable door
Lockable external door hardware for privacy and security.
Key features
- Two separately entered toilet cubicles

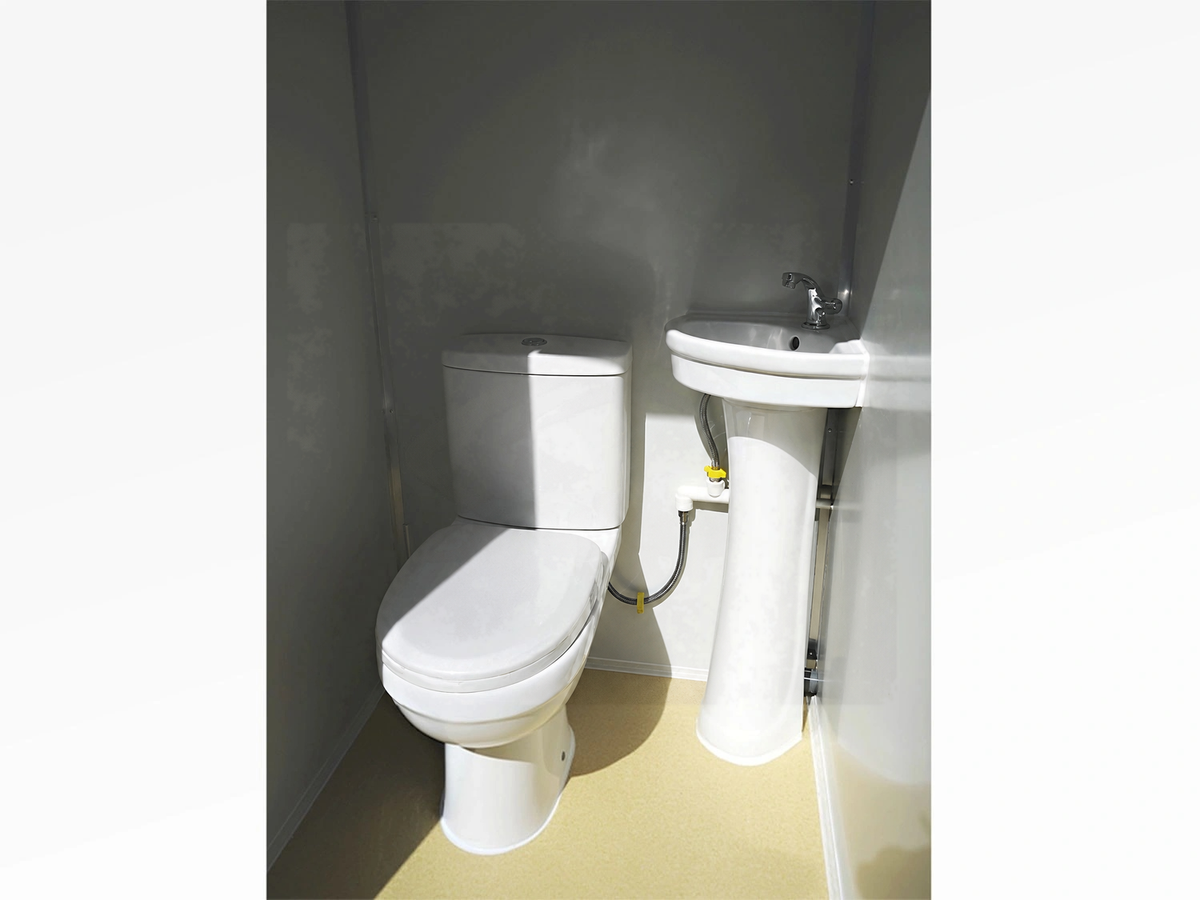

- Ceramic toilet and pedestal basin in each cubicle

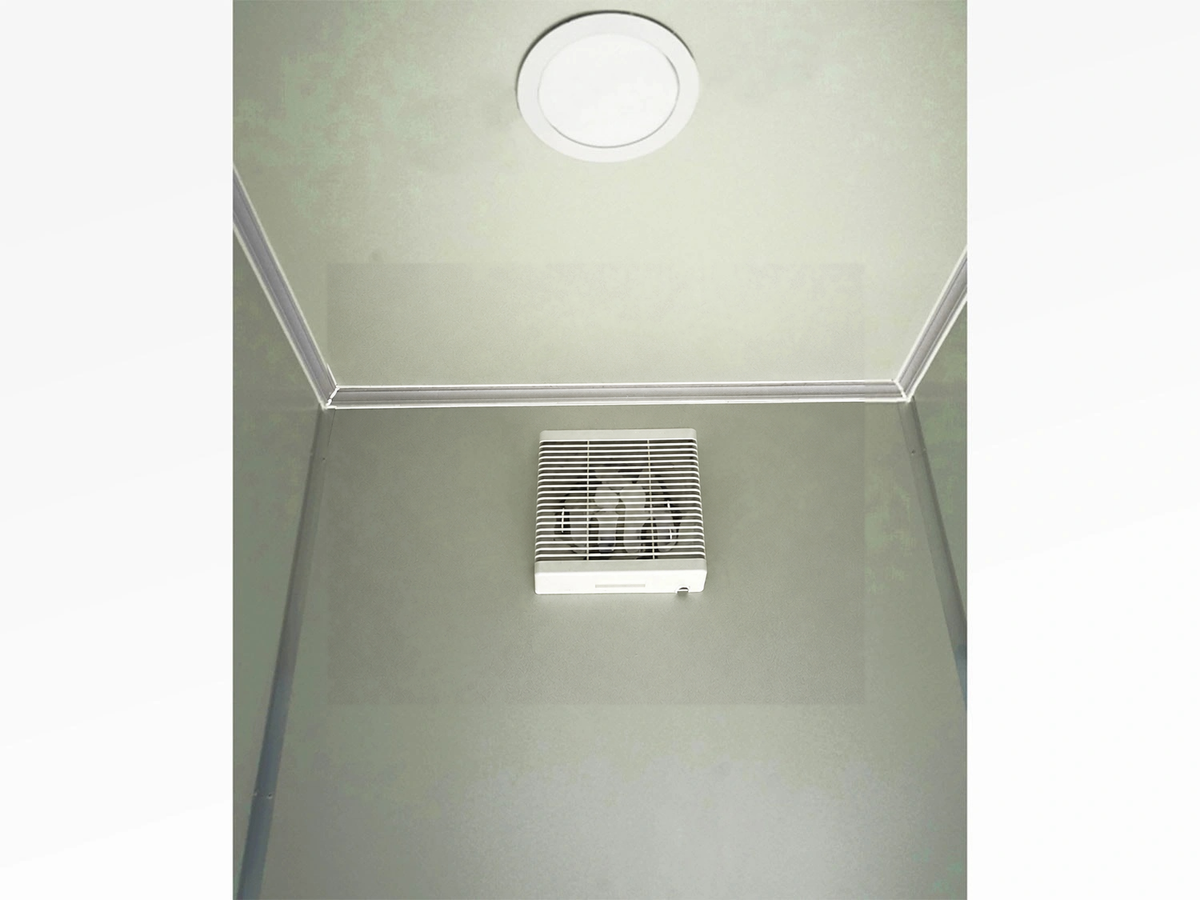

- Factory electrical fit-out with lights, ventilation and circuit protection
- Factory plumbing fit-out with water and waste connection points
- Steel frame with insulated EPS composite panels
- Anti-slip and wear-resistant floor finish
Suitable for

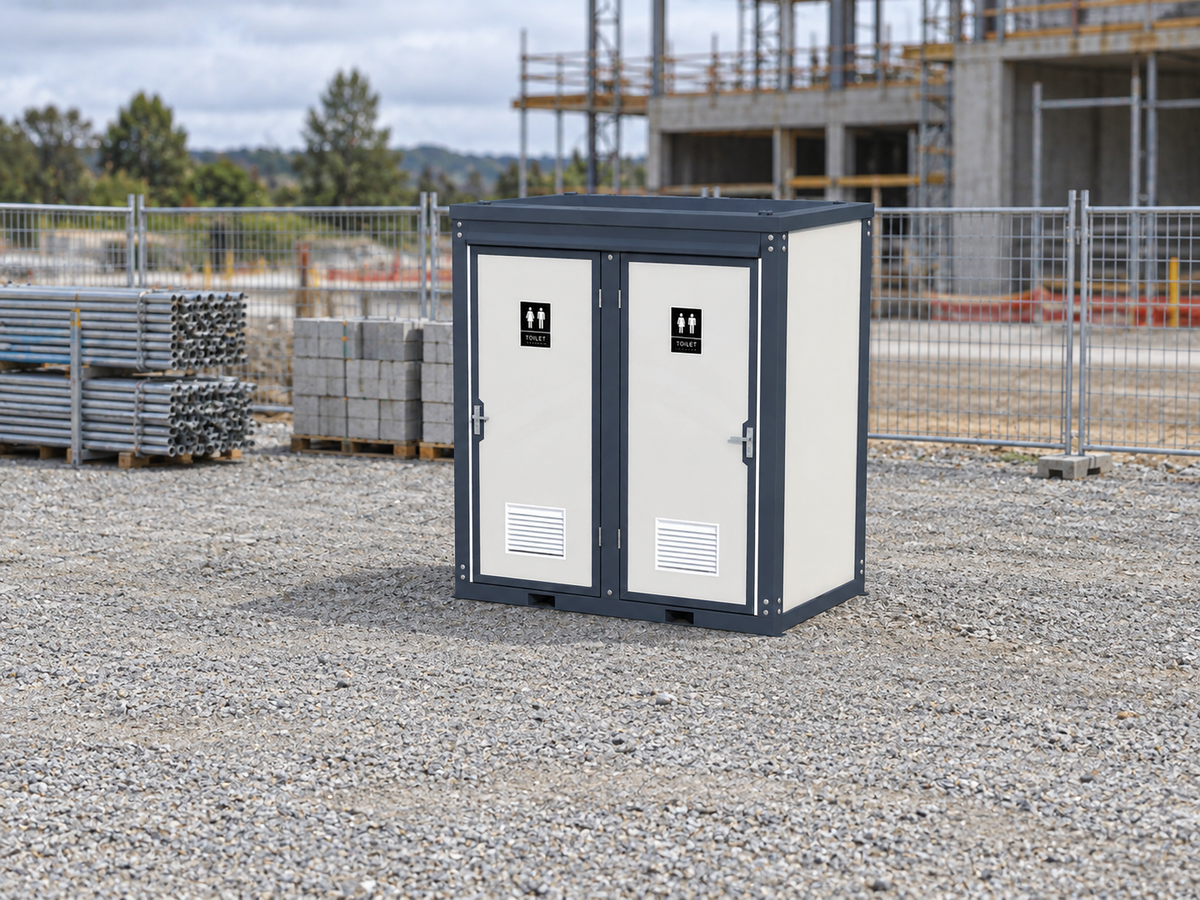

- Construction and civil worksites
- Events and temporary facilities
- Rural, industrial and commercial sites
- Sites needing two private toilet rooms with external services
Practical benefits
Two-user capacity
Separate entrances allow both cubicles to be used independently.
Handwashing included
Each pictured cubicle includes its own basin.
Relocatable shell
Compact steel-framed module can be repositioned using a verified handling plan.
Specifications
- Dimensions
- 2160 mm × 1300 mm × 2360 mm
- Approx. weight
- 490 kg
- Configuration
- Double toilet module
- Structure
- Q235 steel frame and steel roof
- Walls and roof
- 50 mm EPS composite panels
- Floor
- 12 mm rigid PVC plus 3 mm anti-slip/wear-resistant finish

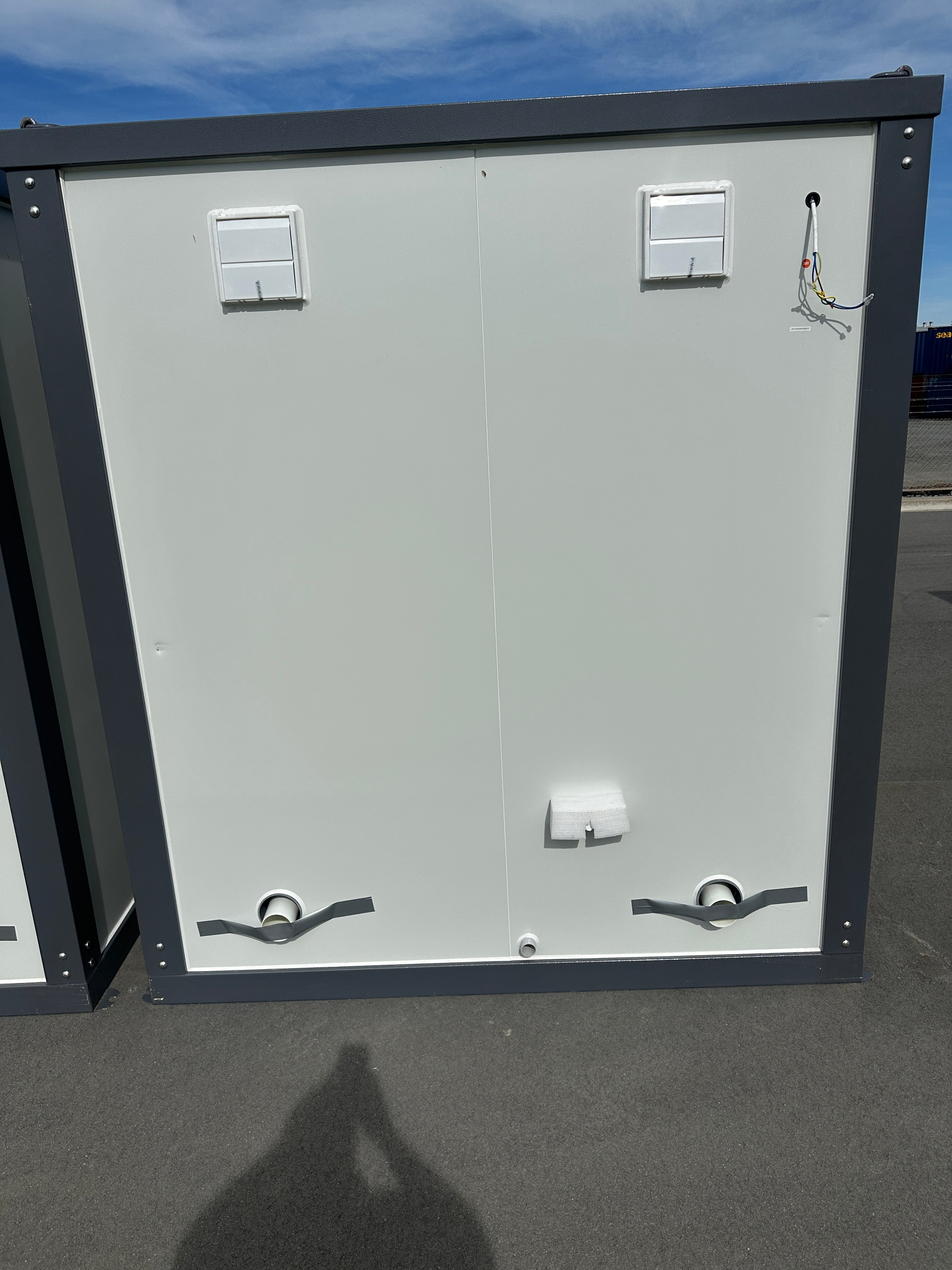

- Water inlet
- 20 PPR pipe with 1/2-inch connection

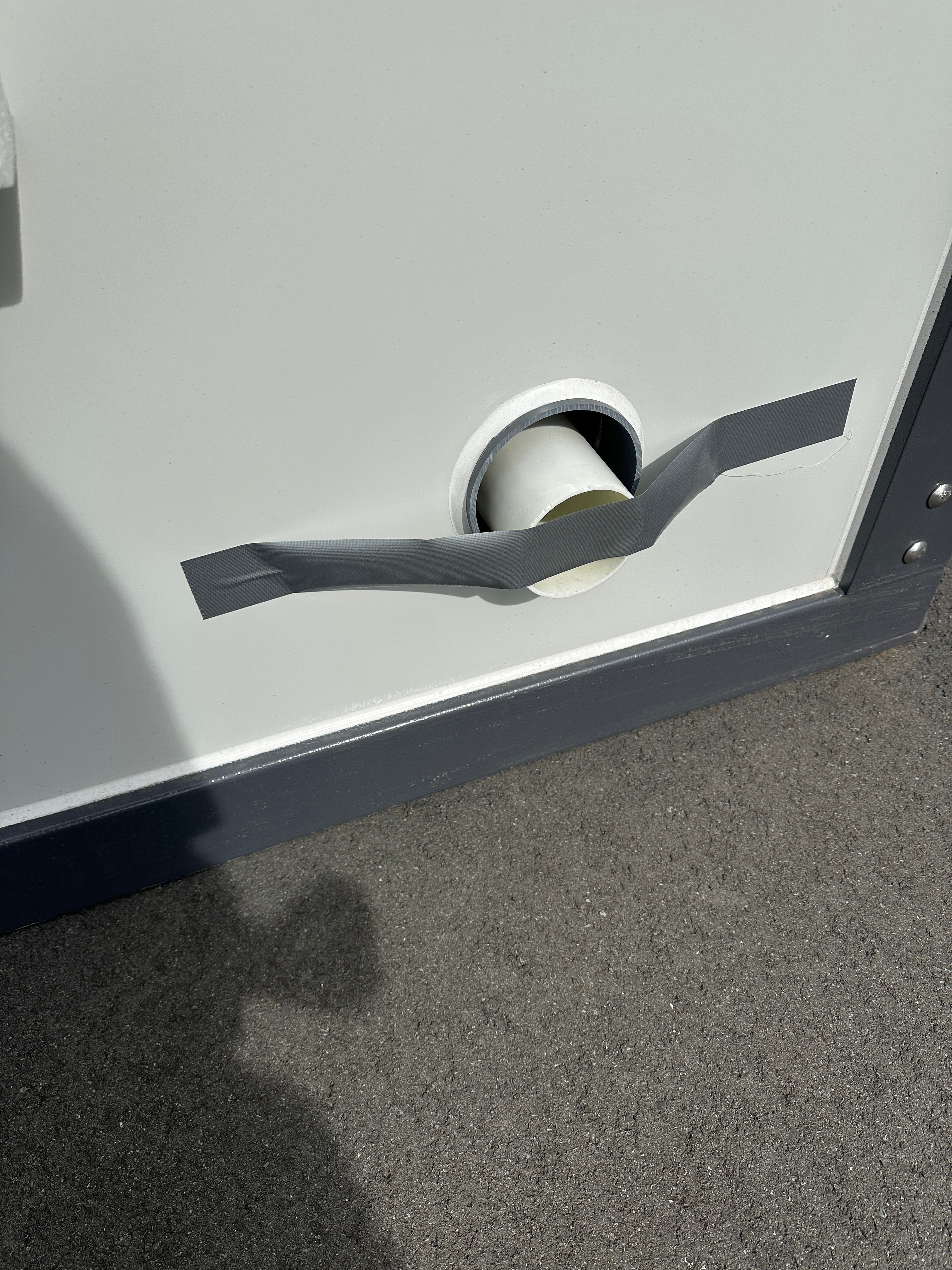

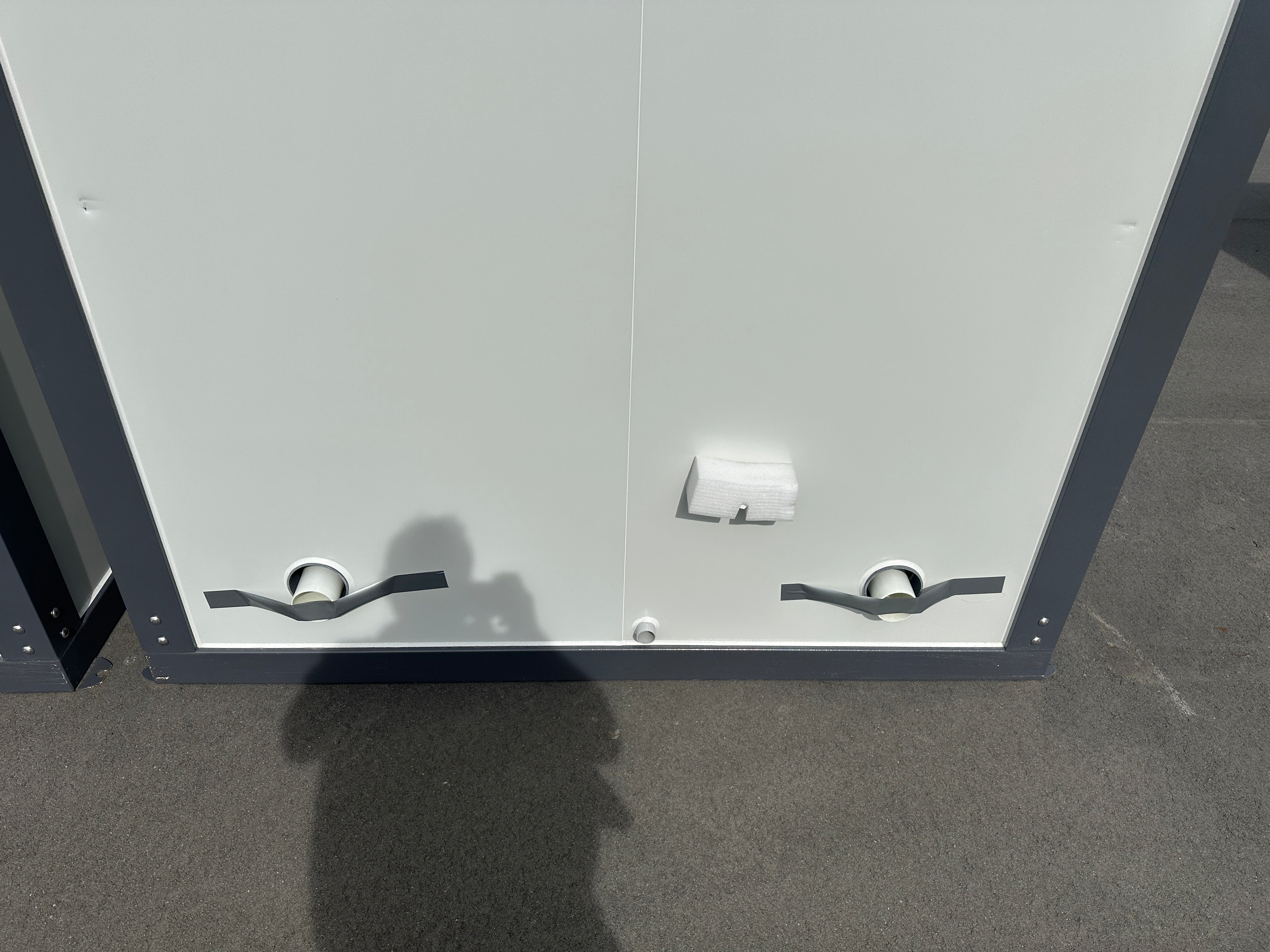

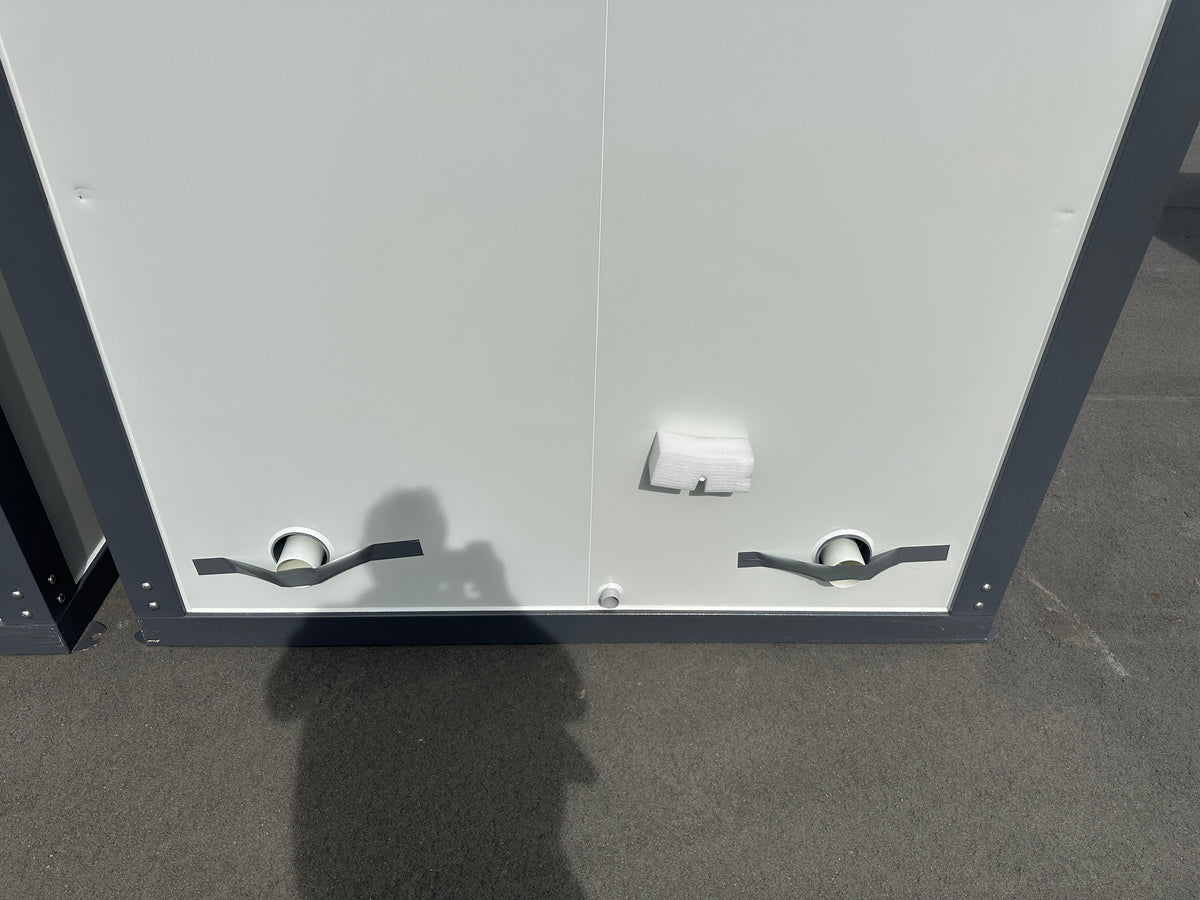

- Drain outlets
- Ø40 general drain; Ø90 toilet discharge
- Electrical

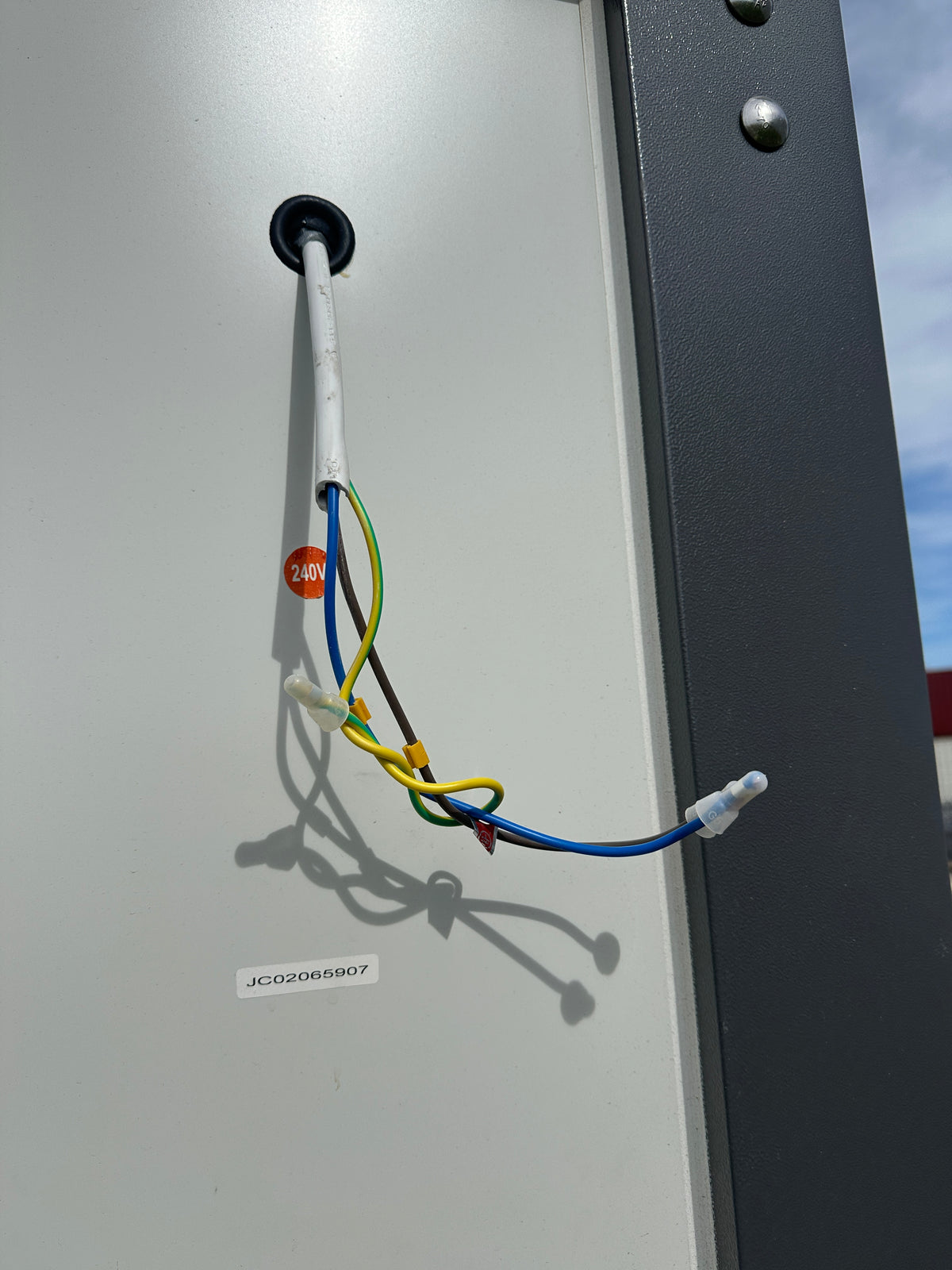

- concealed wiring, 16 A breaker, 32 A aviation socket, switches, lighting and fans
